M1 Overview
Mini Series LED controller reflected LTECH 12 years' powerful independent R&D in LED field, its volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control. Its high cost performance and creative design, allowing users to enjoy the benefits and convenience.
Parameter
MS-M1 | |
Working Voltage | DC3V（battery CR2032） |
Working Frepuency | 433.92MHz |
Remote Distance | 40-50m |
Working Temp | -20℃-60℃ |
Weight(N.W.) | 42g |
Parameter
M4-5A | |
Working Voltage | DC5V-DC24V |
Max Cument Load | 5A×4CH Max20A |
Max Output Pouer | 100W/240W/480W(5V/12V/24V) |
Grade | Max4096×4096×4096×4096 |
Working Temp | -30℃-55℃ |
Weight(N.W.) | 125g |

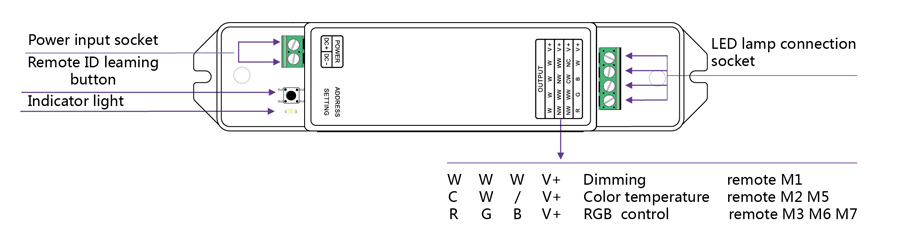

Operating Instruction for Receiver

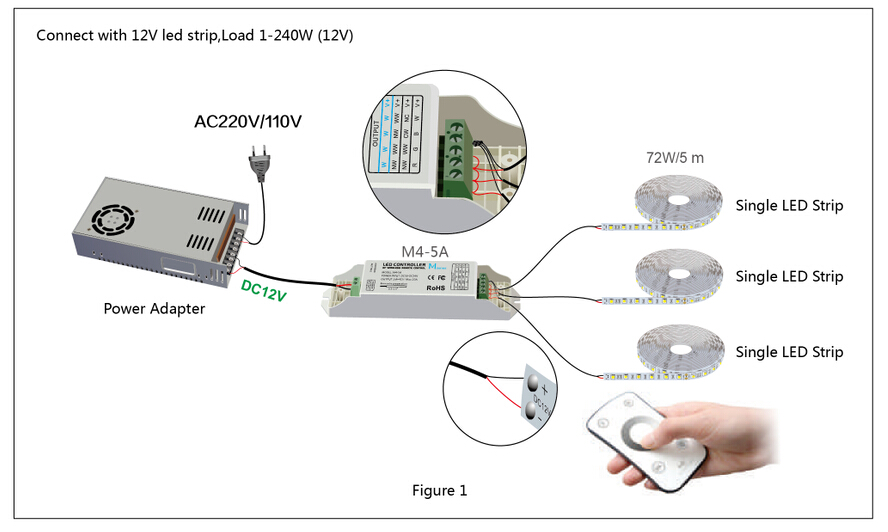

Connection
