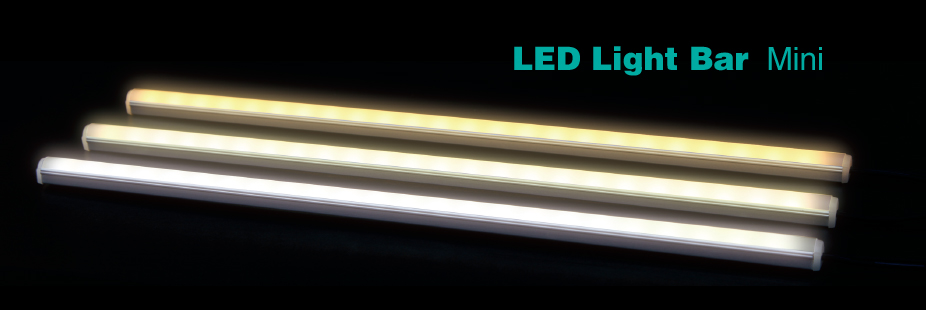

The Led light Bar Mini Frost comes complete with an integrated acrylic diffuser to gently blend point source LED’s . Led Light Bar Mini Frost allows Full customization in length and color temperature.
Specifications
LED Light Bar mini | |
Max Size | 2500mm |
Min Size | 50mm |
lnput voltage | 12V DC |
Color temperature | 2700K 3000K 3500K 4100K 5300K 6500K |
Operating Temperature | －20°～ ＋60° |

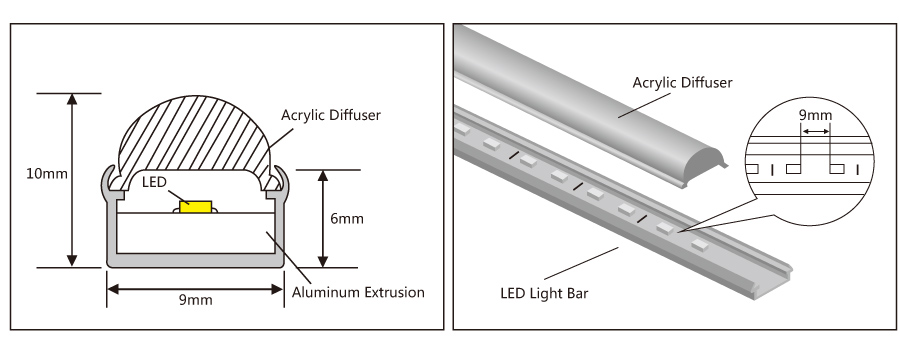

Profile view 3D Drawing
Features
EXTREMELY LOW PROFILE
CUSTOM MADE TO ANY LENGTH
DIFFUSER BUILT IN
QUICK & EASY INSTALLATION
LOW POWER CONSUMPTION
LONG MAITENANCE FREE LIFE
SHOCK & VIBRATION PROOF
SUPERIOR CONSISTENT LIGHT QUALITY
ADVANCED 3-YEAR WARRANTY

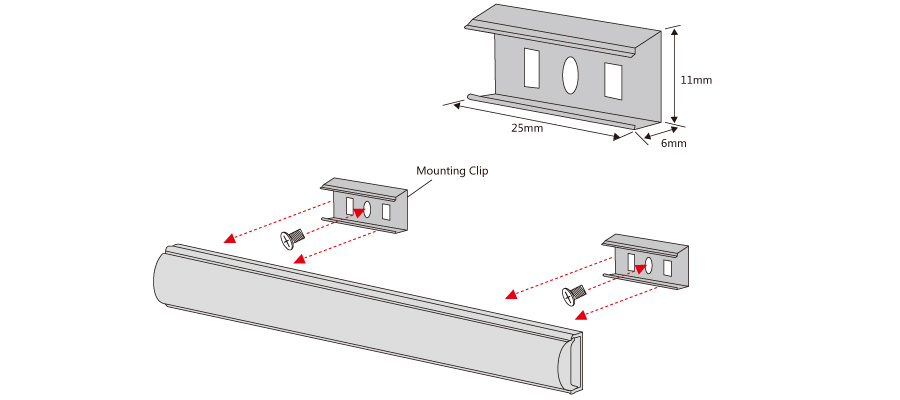

Led Light Bar Mini frost-mounting
Led Light Bar Mini Frost comes equipped with mounting clips
Attach the clips to your substrate using the screws provided. Some applications may Require special anchors, such as drywall anchors (not provided).

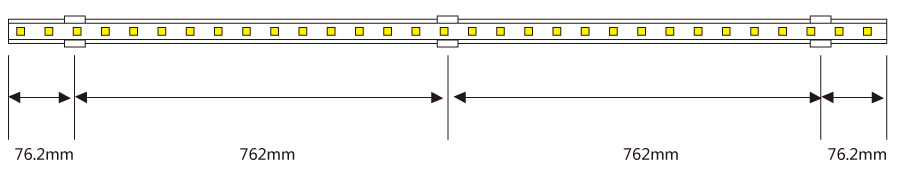

Clips should be installed within 76.2mm from each end. For long lengths, a clip should be Used every 762mm
