Specifications
Description | MS#13 | MS#14 |
Max Size | 1250mmX2680mm | 1250mmX2680mm |
Min Size | 152mm*152mm | 152mm*152mm |
Thickness | 25.4mm | 25.4mm |
Visible Size | Frame size (W-60mm)X(L-60mm） | Frame size(W-80mm)X(L-80mm） |
lnput voltage | 12V DC | 12V DC |
Color temperature | 2700K 3000K 3500K 4100K 5300K 6500K | 2700K 3000K 3500K 4100K 5300K 6500K |
Operating Temperature | －20°～ ＋60° | －20°～ ＋60° |
Weight | 9.54kg/sq.M+Frame | 9.54kg/sq.M+Frame |
Frame color | silver/black/white（customized） | silver/black/white（customized） |

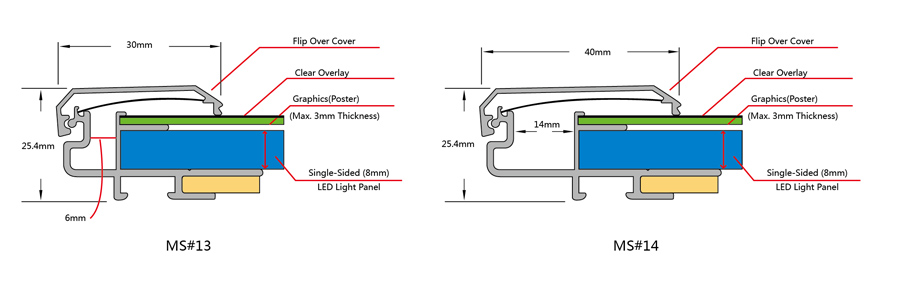

General view MS#13/MS#14

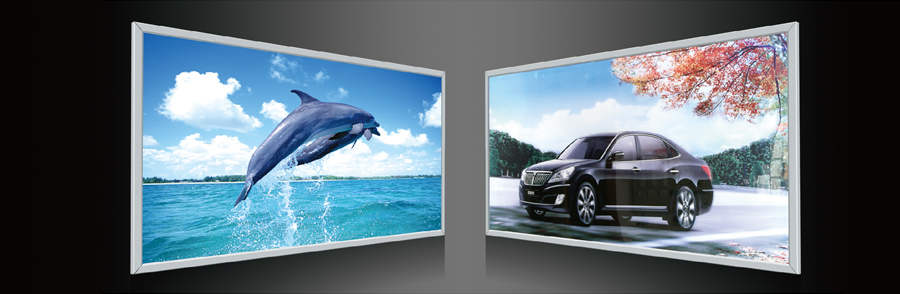

Case study

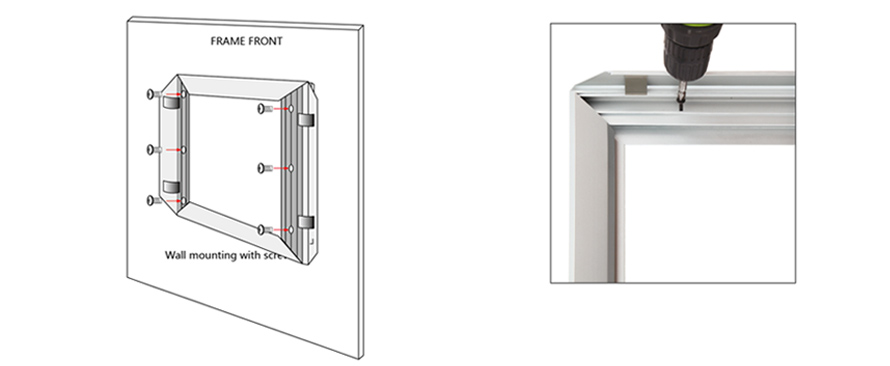

Mounting type 1

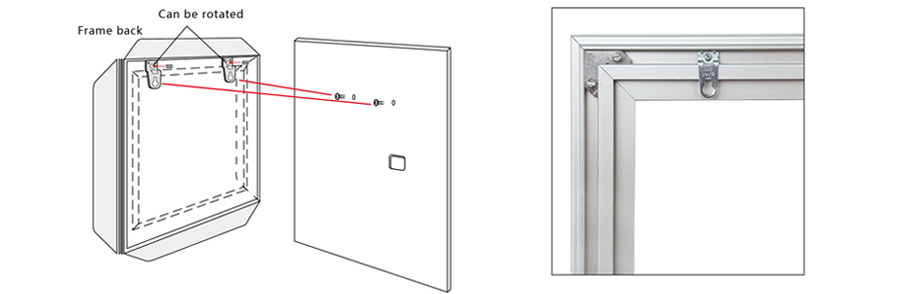

Mounting type 2
